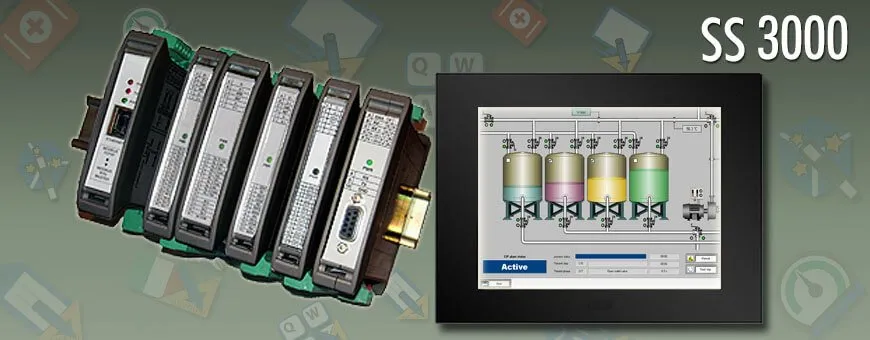

SS3000 SERIES – Compact I/O modules with Modbus RTU/ASCII
Compact I/O Modules
SS3000 includes a series of data acquisition modules with RS485 interface and Modbus RTU/ASCII protocol, featuring a compact format which makes them suitable for DIN rail mounting inside small electrical cabinets.
ALL devices provide highly accurate and stable measurements over time, unaffected by temperature changes.
A double hardware/software Watchdog is responsible for system reboot and variable reset to predefined safe values. The devices can be configured via software. Diagnostic LEDs signal the operational current status of the module, for immediate feedback. All electrical connections are made via pluggable screw terminals. Full galvanic isolation protects communication from electromagnetic interference present in industrial environments.
Common features
| Communication protocols |
|
| Data transmission over serial interface |
|
| Insulation voltage |
|
| Electromagnetic compatibility (EMC) |
|
| Power supply |
|
| Operating environment |
|
| Storage temperature |
|
| Housing |
|
Models
| Model | Description | Datasheet |
|---|---|---|
| SS3014 | Analog module with 4 RTD inputs | |
| SS3015-I | Analog module with 4 current inputs | |
| SS3015-V | Analog module with 4 voltage inputs | |
| SS3016 | Analog module with 4 thermocouple inputs | |
| SS3017-I | Analog module with 8 current inputs | |
| SS3017-V | Analog module with 8 voltage inputs | |
| SS3018 | Analog module with 8 thermocouple inputs | |
| SS3024 | Analog module with 4 voltage or current outputs | |
| SS3130 | Digital module with 4 digital inputs and 4 relay outputs | |
| SS3148 | Digital module with 12 digital inputs | |
| SS3188 | Digital module with 8 digital inputs and 8 transistor outputs | |
| SS3580 SERIAL | Converter from RS232 to RS485/RS422 | |
| SS3580 USB | Converter from USB to RS485/RS422 |
