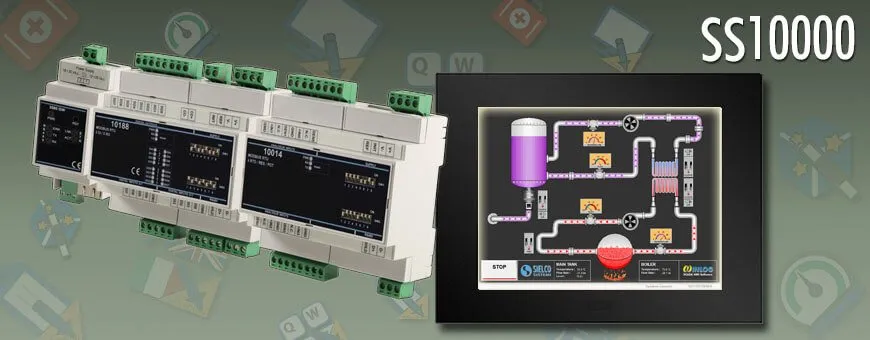

SS10000 SERIES – Industrial I/O modules with Modbus RTU/ASCII

Industrial I/O Modules

SS10000 includes a series of data acquisition modules with RS485 interface and Modbus RTU/ASCII protocol, featuring a low-profile format which makes them suitable for DIN rail mounting inside industrial electrical cabinets.

This line also includes the IoT MQTT Gateway/Datalogger which allows modules to be integrated into an IoT architecture.

ALL devices provide highly accurate and stable measurements over time, unaffected by temperature changes.

A double hardware/software Watchdog is responsible for system reboot and variable reset to predefined safe values. The devices can be configured via software or via dipswitches in the front. Diagnostic LEDs signal the operational current status of the module, for immediate feedback. All electrical connections are made via pluggable screw terminals. Full galvanic isolation protects communication from electromagnetic interference present in industrial environments.

Common features

Communication protocol	Modbus RTU Modbus ASCII Modbus TCP (using SS10580 converter) MQTT (using SS10680 converter)
Data transmission (asynchronous serial)	Maximum baud rate: 115.2 kbps, (maximum distance 1.2 km)
Insulation voltage	1500 Vca at 50 Hz for 1 minute between inputs, outputs, RS485 and supply
Electromagnetic compatibility (EMC)	Immunity: conform to EN 61000-6-2 Emissions: conform to EN 61000-6-4
Power supply	Supply voltage: from 10 to 30 VDC Maximum current consumption: 45 mA at 24 VDC Polarity inversion protection: maximum 60 VDC
Operating environment	Temperature: from -10 to +60 °C Humidity: from 0 to 90 % (non condensing)
Storage temperature	from -40 to +85 °C (without ice)
Housing	Material: self-extinguishing plastic Mounting: on EN-50022 DIN rail Weight: about 200g

Models

Model	Description	Datasheet
SS10014	Analog module with 4 RTD inputs	EN2018-11-29IT2018-11-29
SS10015	Analog module with 4 voltage e 4 current inputs	EN2018-11-29IT2018-11-29
SS10016	Analog module with 4 thermocouple inputs	EN2018-11-29IT2018-11-29
SS10017-I	Analog module with 8 current inputs	EN2018-11-29IT2018-11-29
SS10017-V	Analog module with 8 voltage inputs	EN2018-11-29IT2018-11-29
SS10018	Analog module with 8 thermocouple inputs	EN2018-11-29IT2018-11-29
SS10130	Digital module with 8 digital inputs and 4 relay outputs	EN2018-11-29IT2018-11-29
SS10148	Digital module with 16 digital inputs	EN2018-11-29IT2018-11-29
SS10188	Digital module with 8 digital inputs and 8 open-collector outputs	EN2018-11-29IT2018-11-29
SS10580	Converter from Modbus TCP Ethernet to Modbus RTU RS485	EN2018-12-06IT2018-11-29
SS10680-IOT-LOG	IoT Modbus/MQTT Gateway Datalogger	EN2026-05-14IT2026-05-14
SS10680-MOD-LOG	Modbus Gateway Datalogger	EN2026-05-14IT2026-05-14
SS10680-MOD	Modbus TCP / Modbus RTU Isolated Wi-Fi Gateway	EN2026-05-14IT2026-05-15
